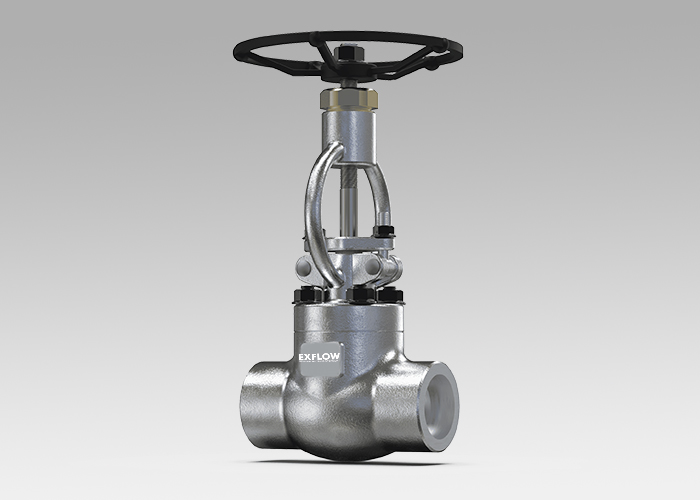

Description
- Size : 1/2″ (15 mm) to 0.2″ (50 mm)
- Class : 800# / 1500# / 2500#
- End : Threaded / Socket Weld / Butt Weld Ends
- Design : API 602/BS 5352 / B 16.11/B 16.25
- Feature : Bolted / Welded Bonnet
*Special Material & Higher Size/Class Valves also available on request.
Test Pressure
| TESTING | HYDEAULIC | PNUMATIC | ||
|---|---|---|---|---|
| 800# | 1500# | 2500# | ||
| BODY | 3000 PSIG | 5400 PSIG | 9060 PSIG | – |
| BACK SEAT | 2200 PSIG | 4075 PSIG | 6800 PSIG | – |
| SEAT | 2200 PSIG | 4075 PSIG | 6800 PSIG | 80 PSIG |
Technical Specifications
For 150#
| SIZE | L | H | H1 | ØWH | SCR. ENDS | SW. ENDS | |||
|---|---|---|---|---|---|---|---|---|---|
| ØD | |||||||||
| ØC | E | Max. | Min. | F(Min.) | |||||
| 15 | 85 | 162 | 170 | 90 | 1/2″ | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 92 | 170 | 180 | 90 | 3/4″ | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 105 | 190 | 202 | 90 | 1″ | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 127 | 243 | 260 | 145 | 1.1/2″ | 18.38 | 49.15 | 48.64 | 12.7 |
| 50 | 140 | 255 | 272 | 145 | 2″ | 19.23 | 61.62 | 61.11 | 15.75 |
For 300#
| SIZE | L | H | H1 | ØWH | SCR. ENDS | SW. ENDS | |||
|---|---|---|---|---|---|---|---|---|---|
| ØD | |||||||||
| E | Max. | Min. | F(Min.) | ||||||
| 15 | 92 | 170 | 180 | 90 | 1/2″ | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 105 | 190 | 202 | 90 | 3/4″ | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 127 | 243 | 260 | 145 | 1″ | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 140 | 255 | 272 | 145 | 1.1/2″ | 18.38 | 49.15 | 48.64 | 12.7 |
