Gate Valve

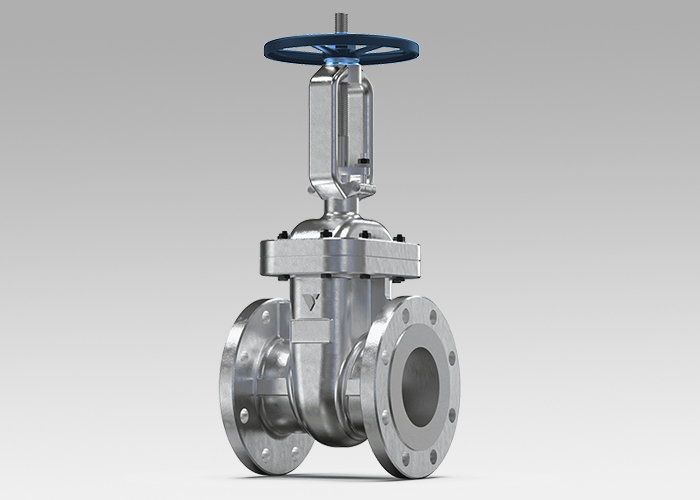

Valve Image

Description

Size : 2” (50 mm) to 36” (900 mm)
Class : 150#/300#/600#/900#/1500#
End : Flanged End to ASME B16.5 RF Butt
Weld Ends to AME B16.25
Design / Mfg. Sth. : API 600 / API 603 / BS 1414
Face to face : ASME B16.10
Inspection & Testing Std. : API 598

*Special Material & Higher Size/Class Valves also available on request.

Test Pressure

For 300#

TESTING	HYDEAULIC			PNUMATIC
	150#	300#	600#	–
BODY	450 PSIG	1125 PSIG	2175 PSIG	–
BACK SEAT	325 PSIG	825 PSIG	1600 PSIG	–
SEAT	325 PSIG	825 PSIG	1600 PSIG	80 PSIG
AIR	80 PSIG	80 PSIG

Technical Specifications

For 300#

Size	ALL DIMENSION ARE IN MM.
NB	L	H	ØF	T	ØR	ØW	PCD	ØD x ‘N’
40	165	300	127	17.5	73	170	98	16*4
50	178	320	152	19.1	92	203	121	19*4
65	191	336	178	22.4	105	203	140	19*4
80	203	455	191	23.9	127	230	152	19*4
100	229	485	229	23.9	157	250	191	19*8
125	255	580	254	23.9	186	265	216	22*8
150	267	690	279	25.4	215	306	241	22*8
200	292	950	343	28.4	270	325	298	22*8
250	330	1050	406	30.2	324	400	362	25*12
300	356	1200	483	31.8	381	600	432	25*12
350	381	1206	534	35.0	413	610	476	28*12
400	407	1364	597	36.6	470	610	540	28*16
450	432	1444	635	39.7	533	610	578	32*16
500	457	1475	699	42.9	584	650	635	32*20
600	508	1720	813	47.7	692	650	749	35*20

For 300#

Size	ALL DIMENSION ARE IN MM.
NB	L	H	ØF	T	ØR	ØW	PCD	ØD x ‘N’
40	191	350	156	20.7	73	200	114	22*4
50	216	390	165	22.3	92	200	127	19*8
65	241	430	190	25.4	105	225	149	22*8
80	283	450	210	28.6	127	300	168	22*8
100	305	525	254	31.8	157	350	200	22*8
125	381	610	280	35.0	185	400	235	22*8
150	403	750	318	36.6	216	500	270	22*12
200	419	855	381	41.3	270	600	330	22*12
250	457	950	445	47.7	324	600	387	29*16
300	502	1290	521	50.8	381	600	451	32*16
350	571.5	1380	584.2	54.0	412.5	600	514.35	32*20
400	609.6	1460	647.7	57.2	470	700	571.5	35*20
450	660.4	1550	711.2	60.4	533.4	700	628.65	35*24
500	711.2	1630	774.7	63.5	584.2	750	685.8	35*24
600	787.4	1820	914.4	69.9	698.5	800	812.8	41*24
